Application:

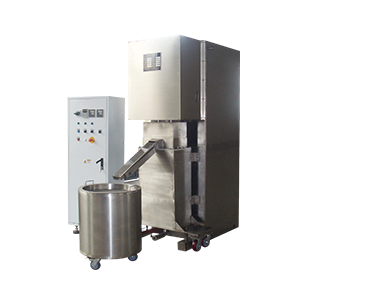

QMJ250 Chocolate Ball Milling Machine is used for ball grinding and milling chocolate pastes. Through collision and friction between the steel balls and the chocolate pastes inside the machine cylinder, the chocolate pastes will continuously improve its fineness till it reaches the required rate. This machine has advantages of high production output, low energy cost, even fineness and etc.. This machine should be used along with chocolate refiner and conche, chocolate storage tank and chocolate delivery pump to achieve continuous production and improve production efficiency. It has automatic temperature control.
Technical Parameters:
Model | QMJ250 |
Main Motor Power (kW) | 15 |
Biaxial Revolution Speed(rpm/ariable Frequency Control) | 250-500 |
Production Capacity (kg/h) | 200-250 |
Fineness (um) | 25-20 |
Ball Material | Ball Bearing Steel |
Balls Weight(kg) | 180 |
Machine Weight(kg) | 2000 |
Outside Dimension (mm) | 1100x1250x2150 |
Application:
QMJ1000 Chocolate Ball Milling Machine is used for ball grinding and milling chocolate pastes.Through collision and friction between the steel balls and the chocolate pastes inside the machine cylinder, the chocolate pastes will continuously improve its fineness till reach the required rate.This machine has advantages of high production output, low energy cost, even fineness and etc.. This machine should be used along with chocolate mixer, chocolate storage tank and chocolate delivery pump to achieve continuous production and improve production efficiency. It has automatic temperature control and PLCcontrol system.
Technical Parameters:
Model | QMJ1000 |
Main Motor Power (kW) | 55 |
Production Capacity (kg/h) | 750-1000 |
Fineness (um) | 25-20 |
Ball Material | Ball Bearing Steel |
Balls Weight(kg) | 1400 |
Machine Weight(kg) | 5000 |
Outside Dimension (mm) | 2400x1500x2600 |
