Application:

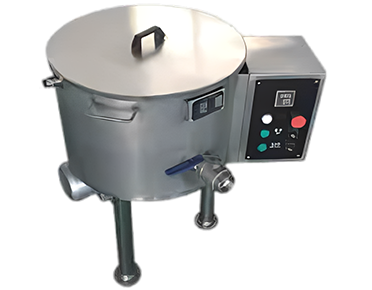

BWG Chocolate Storage Tank is the special storage container for conched or ball milled chocolate pastes with electric heating and automatic temperature control. It enables the chocolate pastes being kept at a set temperature.Through heat preserving and stirring,it will lower the moisture content of the chocolate pastes and improve its liquidity so as to have a longer shelf life and better taste.
Technical Parameters:
Model | BWG30 | BWG50 | BWG100 | BWG200 | BWG300 | BWG500 |
Capacity(L) | 30 | 50 | 100 | 200 | 300 | 500 |
Stirring Speed (rpm) | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 |
Main Power (kW) | 0.25 | 0.25 | 0.55 | 0.75 | 0.75 | 1.5 |
Heating Power (kW) | 2 | 2 | 2 | 4 | 4 | 4 |
Machine Weight (kg) | 100 | 120 | 150 | 200 | 280 | 500 |
Outside Dimension (mm) | Ф500*800 | Ф700*850 | Ф650*950 | Ф800*1150 | Ф900*1250 | Ф1000*1380 |
Model | BWG1000 | BWG2000 | BWG3000 | BWG5000 | BWG10000 |
Capacity(L) | 1000 | 2000 | 3000 | 5000 | 10000 |
Stirring Speed (rpm) | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 |
Main Power (kW) | 2.2 | 3 | 5.5 | 7.5 | 11 |
Heating Power (kW) | 6 | 9 | 9 | 9 | 12 |
Machine Weight (kg) | 900 | 1500 | 2000 | 3100 | 5000 |
Outside Dimension (mm) | Ф1220*1850 | Ф1700*2100 | Ф1900*2150 | Ф2200*2250 | Ф2250*3800 |
