Application:

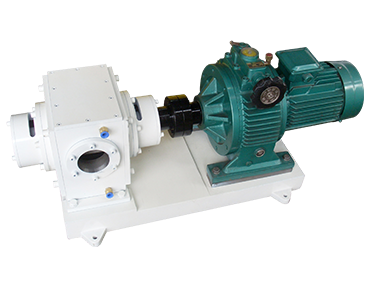

SJB Chocolate Delivery Pump is mainly used for pumping and conveying of chocolate pastes and other pastes products.Series Y can also be used to conveying chocolate pastes mixed with small grain items,This series of chocolate delivery pump hasjacketed insulation.
Technical Parameters:
Model | SJB25-C | SJB32-C | SJB30-Y | SJB50-Y | SJB80-Y |
Flow Speed (L/min) | 25 | 32 | 30 | 50 | 80 |
Pump Lift(m) | 8 | 8 | 10 | 10 | 10 |
Inlet and Outlet Diameter (In) | 1 | 1.5 | 1.5 | 2 | 3 |
Main Power (kW) | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 |
Outside Dimension (mm) | 700*300*400 | 780*390*450 | 750*390*450 | 800*400*500 | 1150*460*520 |
